| The Singlefold Ramp,
designed by PVI, is easy to handle and set up. The ramp folds in the
middle and has a convenient carrying handle. The ramp unfolds to a 30 inch
wide platform that is ideal for wheelchairs and scooters with three or
four wheels. These single fold ramps are the lightest weight on the
market. Other features include all aluminum construction and high traction
tape on the surface. The weight capacity is 600 pounds. You can expect
quick delivery by UPS of this stock item. Custom widths are available. |
 |
|
ITEM
NUMBER
|
LENGTH
|
WIDTH
|
FOLDED
SIZE
|
WEIGHT
|
CAPACITY
|
|
SFW230
|
2 feet
|
30 inches
|
24"x16"x4"
|
10 lbs.
|
600lbs.
|
|
SFW330
|
3 feet
|
30 inches
|
36"x16"x4"
|
14 lbs.
|
600lbs.
|
|
SFW430
|
4 feet
|
30 inches
|
48"x16"x4"
|
18 lbs.
|
600lbs.
|
|
SFW530
|
5 feet
|
30 inches
|
60"x16"x4"
|
22 lbs.
|
600lbs.
|
|
 |

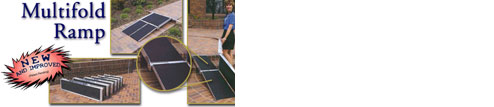

| This innovative multifold
wheelchair ramp has several new features. Some of the improvements include
a new design of the center joint which not only eliminates the pinch
points of earlier models, but adds strength to the highest stress area of
the ramp. The ramp folds up and carries like a suitcase. This new model is
three inches shorter than the original model when folded making it easier
to store and carry. Other improvements include auto locking of the last
two folds of the ramp so there is no need for a clip to hold the sides
together when carrying. Just fold and go. |
| These ramps are
all aluminum construction with a high traction tape on the surface. The
multifold ramp is available in 5 feet, 6 feet, 7 feet, 8 feet, and 10 feet
lengths. The ramp unfolds to a 30 inch wide platform that is ideal for
wheelchairs and scooters with three or four wheels. The weight capacity is
600 pounds. You can expect quick delivery by UPS of these stock ramps.
Custom widths are available. |
 |
| This small threshold ramp is
designed for doorways. These ramps are available in 8", 10",
12", 16", and 24" lengths by 32" wide. It has holes
punched in each of the top corners for easy installation. Made of
aluminum, surfaced with anti-slip, high traction safety tape, it is
lightweight yet durable. Load capacity of this ramp is 300 lbs. per axle. |
|
ITEM
NUMBER
|
LENGTH
|
WIDTH
|
THICKNESS
|
WEIGHT
|
CAPACITY
|
|
THR832
|
8 inches
|
32 inches
|
|
2 1/2 lbs.
|
300 lbs. per
axle
|
|
TH1032
|
10 inches
|
32 inches
|
|
3 1/2 lbs.
|
300 lbs. per
axle
|
|
TH1232
|
12 inches
|
32 inches
|
|
4 lbs.
|
300 lbs. per
axle
|
|
TH1632
|
16 inches
|
32 inches
|
1 1/2"
|
6 lbs.
|
300 lbs. per
axle
|
|
TH2432
|
24 inches
|
32 inches
|
1 1/2"
|
10 lbs.
|
300 lbs. per
axle
|
|
 |
| This is a modular,
all aluminum ramp system, for both home access and commercial use. This 36
inch wide ramp system has a load carrying capacity of 100 pounds per
square foot. The ramp system consists of standard components that can be
assembled quickly and easily with common hand tools. The modular
components make it easy to move the ramp to a new location or change the
configuration. Straight ramps, 90 degree turns, and 180 degree switchbacks
are designed to meet ADA recommendations. |
| Standard
handrails consist of two 11/2 inch diameter horizontal rails.
PVI offers optional handrail designs. This system is able to accommodate
architectural inserts to complement the surroundings.
The modular ramp system is strong,
durable, portable, flexible, and yet is affordable enough to make it the
best alternative to provide quality, functional access to many areas. |
| Width |
36 inches |
| Length |
As required - 4 foot
minimum |
| Load
Capacity |
100+ pounds per
square foot |
| Slope |
Adjustable - as
required |
| Floor |
Slip resistant
grooved aluminum |
| Edge
protection |
2 inch curb |
| Handrails |
Double 1 1/2"
bar - standard height 36" - 38" |
|
 |
| This ramp is an excellent
choice when a more permanent ramp is desired. No assembly required. Its
one-piece design makes it ideal for wheelchairs and scooters with three or
four wheels. This ramp is constructed of aluminum and has a slip resistant
surface. The solid ramp is available in three lengths and two widths.
Custom widths are also available. The load capacity is 600 pounds. |
|
